Stratos Multi E461N Multiparameter Transmitter | Memosens/Analog Sensors | 2-Channel | PROFINET | 2x 4…20 mA Outputs

Skip image gallery
Explosion protection
Current outputs
Communication (Output, Digital)
Channels
Product number: E461N.010
Description Technical details Downloads Use cases Blog posts

Description

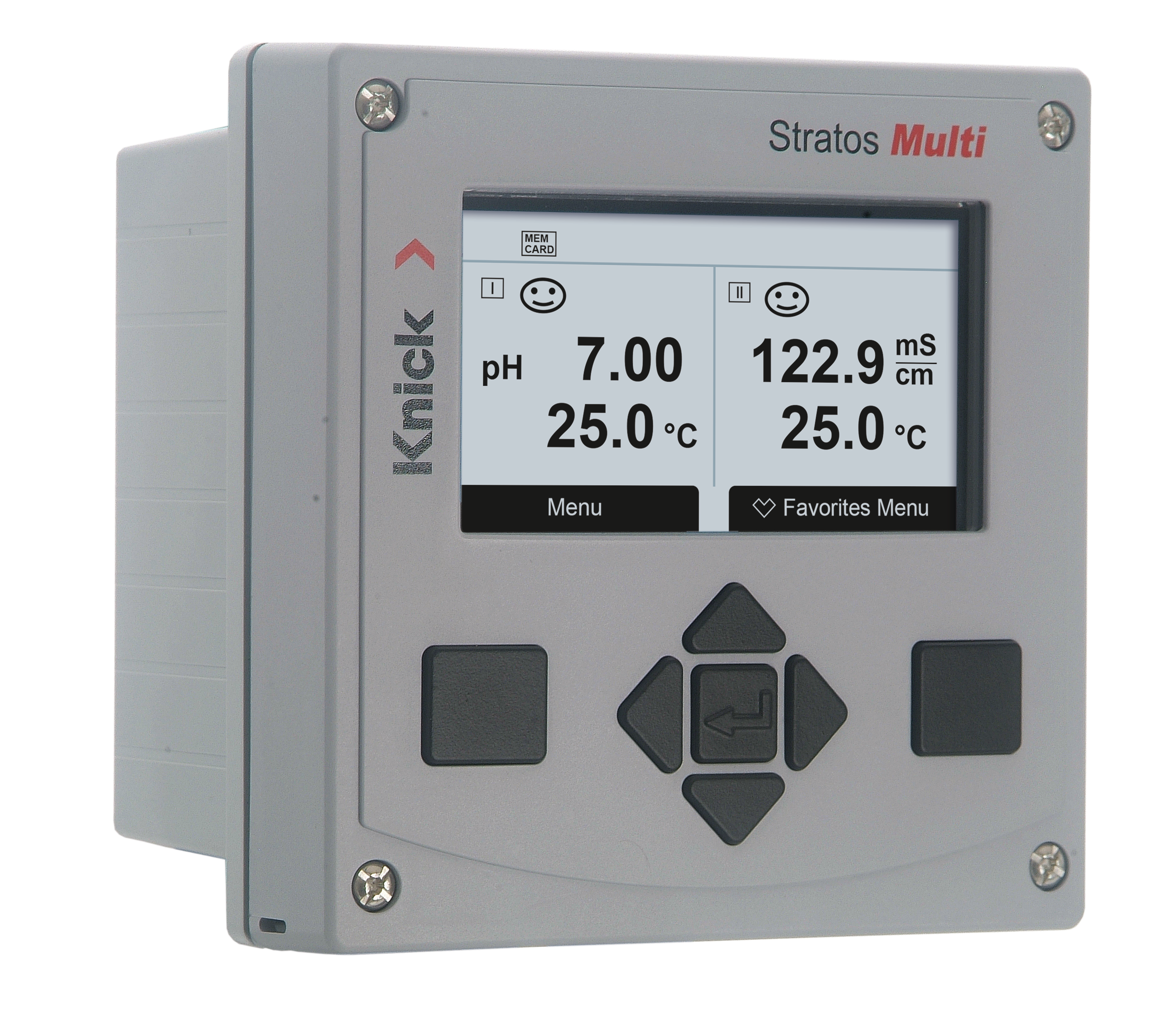

Stratos Multi E461N Multiparameter Transmitter | Memosens/Analog Sensors | 2-Channel | PROFINET | 2x 4…20 mA Outputs

The latest generation of our proven Stratos process analyzers for Memosens, digital, and analog sensors.

  • 2-channel version
  • Secure digital interconnection of PCS, devices, and sensors via PROFINET
  • Passcode-controlled access to different levels
  • Multiparameter for pH/ORP/conductivity/oxygen
  • Self-explanatory, multi-lingual user interface
  • TFT display with full-text menu
  • 4-wire transmitter with broad-range power supply 24 ... 230 V AC/DC
  • Predictive maintenance for optimal process management:
    • CIP/SIP and autoclaving counter
    • Sensor diagram
    • Remaining sensor service life
  • Measurement with Memosens, digital, and analog sensors
  • Memory cards for data recording or firmware update
  • Access control

Communicative
PROFINET can be used to transmit comprehensive process and diagnostic data directly to the process control system. Twenty AIs (analog input blocks) are available for this purpose.

Intuitive
Large widescreen display for a quick overview of all relevant measurement data. Self-explanatory user interface with intuitive icons and multi-color display.

Multiparameter
Freely combinable process variables pH, ORP, conductivity, and oxygen, also in 2-channel mode. For greater flexibility in use and easy storage. Analog or other digital sensors can of course continue to be used for all parameters.

New multiparameter transmitter Stratos Multi

Apr 2020

Process Analytics

Transmitters, Launch, Stratos Multi

Knick is launching the the next generation in its Stratos analyzer product line.
more...

We look forward to hearing from you!
Contact Us

Technical details

2- or 4-wire: 4 Wire
Channels: 2 channels
Communication (Output, Digital): PROFINET
Display: Graphical TFT color display 4.3“, white backlighting
Measurement Parameter: pH, Multiparameter, Oxygen, ORP , Conductivity
Memory Card: Memory Cards with USB
permanently installed / portable: permanently installed
Current outputs: 2 Outputs
Explosion protection: non Ex
Enclosure: Molded enclosure, PBT/PC, glass-reinforced
Power Supply: Broad-range power supply
Product Line: Stratos, Stratos Multi

Downloads

Manuals

[16807] User Manual
Stratos Multi E461N
Version 03
[18021] Accessories Manual (DE, EN)
ZU1166 Adapter Cable RJ45/M12 A Type
Version 01
[18078] ChangeLog Firmware History
Stratos-E461
2022-01-04
[16813] Accessories Manual (DE, EN)
ZU1139 Y-Kabel RJ45/M12 D-Typ
Version 01
[16957] User Manual
ProgaLog 4000
PC configuration tool for transmitters
[16825] Accessories Manual (DE, EN)
ZU1073 Adapter Cable RJ45/M12 D-Type
for Stratos Multi E461N/E471N and PN4400-095 module for Protos II 4400
[18022] Accessories Manual (DE, EN)
ZU1164 Y Cable M12 A Type/D Type
Version 01
[16819] Accessories Manual (DE, EN)
ZU1072 RJ45 Socket
for Stratos Multi E461N/E471N and PN4400-095 module for Protos II 4400
Version 02

Brochures

[14735] Brochure
Stratos Multi | Advanced Process Control

Data Sheets

[16843] Data Sheet
Stratos Multi E461N (PROFINET)
Product Description | Specifications | Product Range

Certificates

[16837] Certificate PROFIBUS Nutzerorganisation (PNO)
No. Z013123
Stratos Multi E461N
[14712] EU Declaration of Conformity (DE, EN, FR)
Stratos Multi, Types E401N, E471N, E461N
No. EU211116A | 2021-11-16

Installation guides

[16831] Installation Guide
Stratos Multi E461N
Version 02
[16963] Installation Guide / Installationsanleitung
ProgaLog 4000 | PC configuration tool for transmitters / ProgaLog 4000 | PC-Parametriertool für Transmitter
Version 01
[14741] Installation Guide (DE, EN)
ZU1080-S-N-* | Speicherkarten für Stratos Multi E4*1N
Version 01
[16777] Installation Guide
MK-OXY045/046…
Modules for Oxygen Measurement for the Stratos Series
Version 02

Software

[16795] GSD
Stratos Multi E461 (PROFINET)
