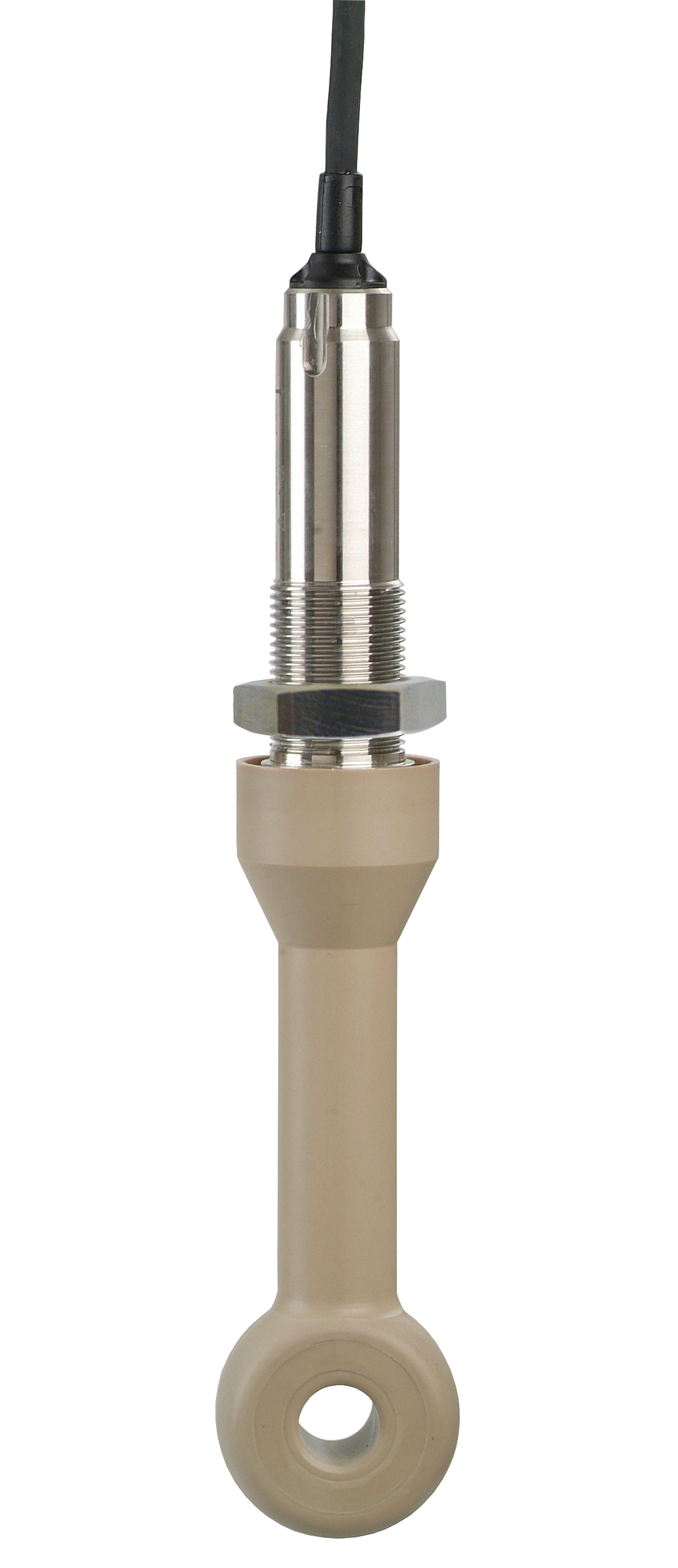

SE655 Toroidal Conductivity Sensor | Fixed cable | PEEK | High chemical resistance
Product number:
SE655
Description
SE655 Toroidal Conductivity Sensor | Fixed cable | PEEK | High chemical resistance
Universal and precise sensor with high chemical resistance over a very large measuring range, for heavily polluted media.
- Sturdy design
- Extremely large measuring range due to inductive measuring principle
- Insensitive to contamination
- No process-wetted electrodes
- High chemical resistance (PEEK)
- Steam-sterilizable
- CIP-capable
Corrosion-resistant toroidal sensor for measuring pure water up to maximum conductivities. Smooth, easy-to-clean design. High accuracy due to electrodeless measurement. Low risk of contamination because of large sensor opening. Also for hazardous locations (SE655X).
Applications
Concentration measurement of acid and alkaline solutions, heavily polluted media, coating-forming and oil-containing media, salt spring, heavily polluted wastewaters, cooling water blowdown, concentrate monitoring, regeneration of ion exchangers
We look forward to hearing from you!
Contact Us
| Measurement Parameter: | Conductivity (inductive) |
|---|---|
| Explosion protection: | non Ex |
| Process Connection: | G 3/4" (36-mm nut and FKM (Viton) gasket included in shipment) |
| Measuring Range: | 0.002 … 2000 mS/cm |
| Temperature: | -20 … 125 °C |
| Temperature Detector: | Pt100 (Class A) |
| Measuring Principle: | Inductive |
| Pressure: | 0 … 20 bar |
| Material: | PEEK |
| Cable: | Fixed cable, 5 m |
| Protection: | IP 68 (when mounted) |
| Cell factor: | Approx. 2/cm (≥ 30 mm distance to wall) |
| Signal Transmission: | analog |
Downloads
Brochures
Data Sheets
Our service
Used in Process or Applications
slide 1 to 3
Related Products
Skip product gallery
slide 4 to 6

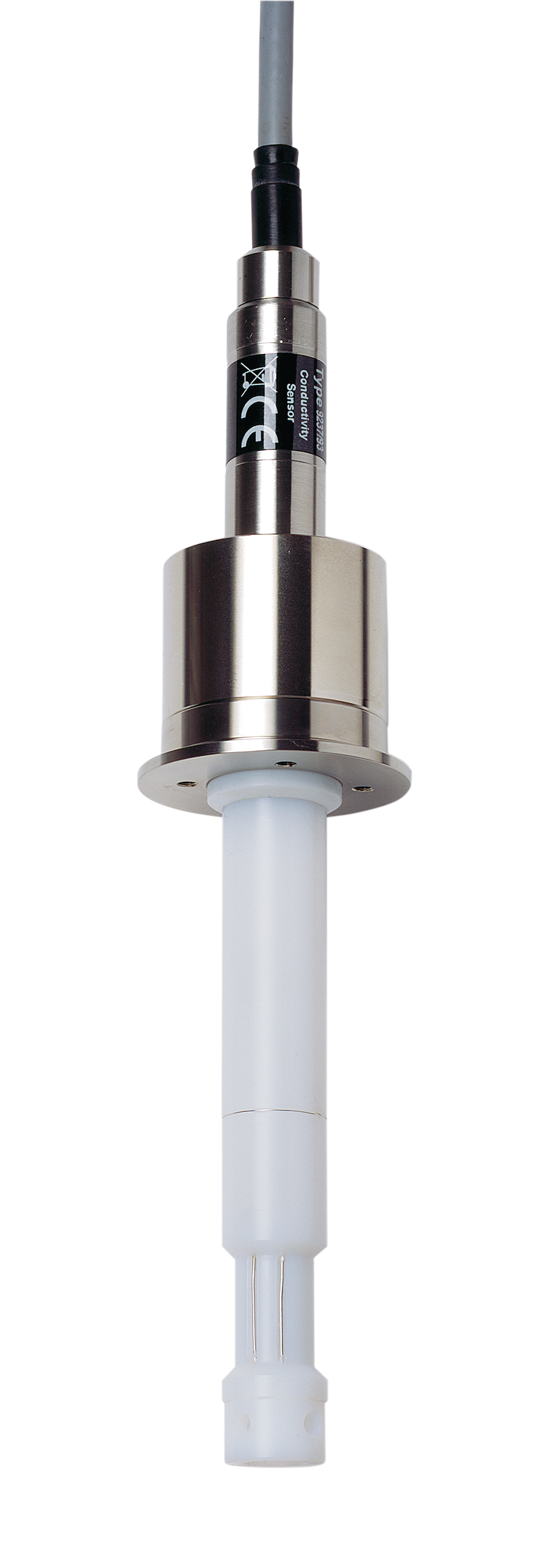

SE603 4-Electrode Conductivity Sensor | Fixed cable | Very high corrosion resistance
Product number:
SE603

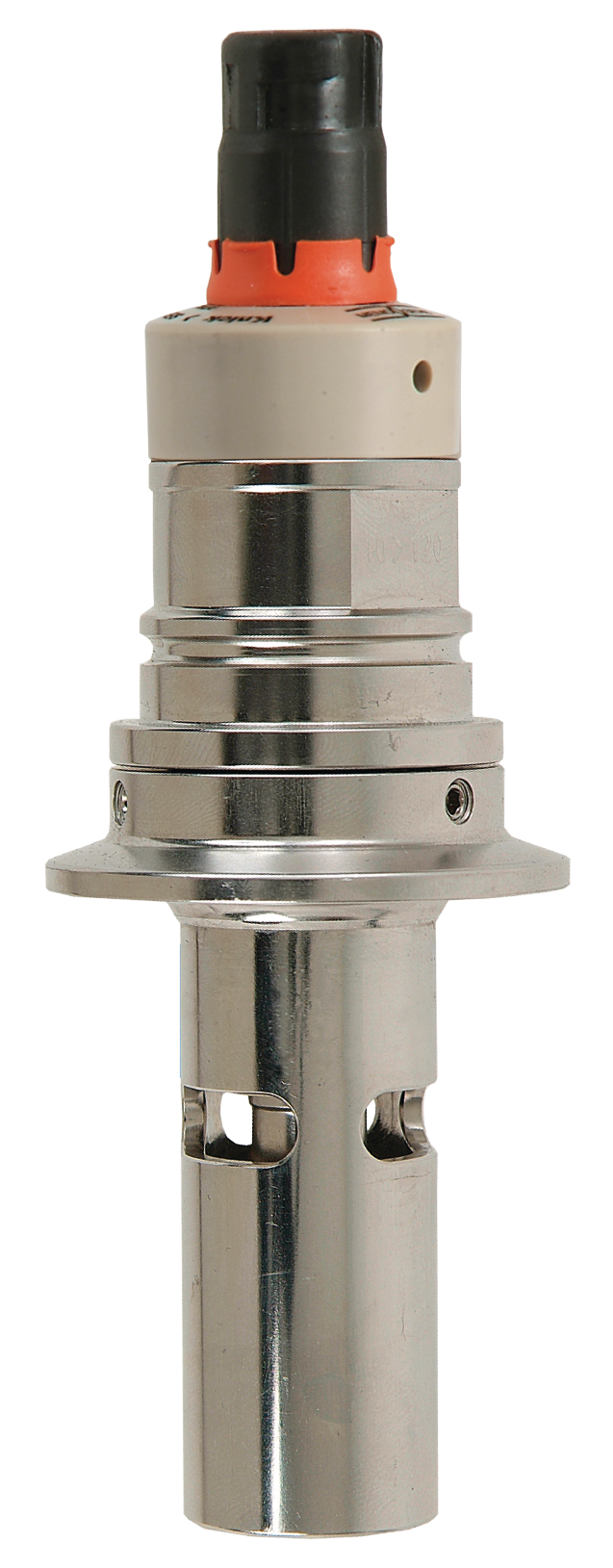

SE605H 2-Electrode Conductivity Sensor | Memosens | Clamp | Ex | Hygienic design
Product number:
SE605H-XMSJ

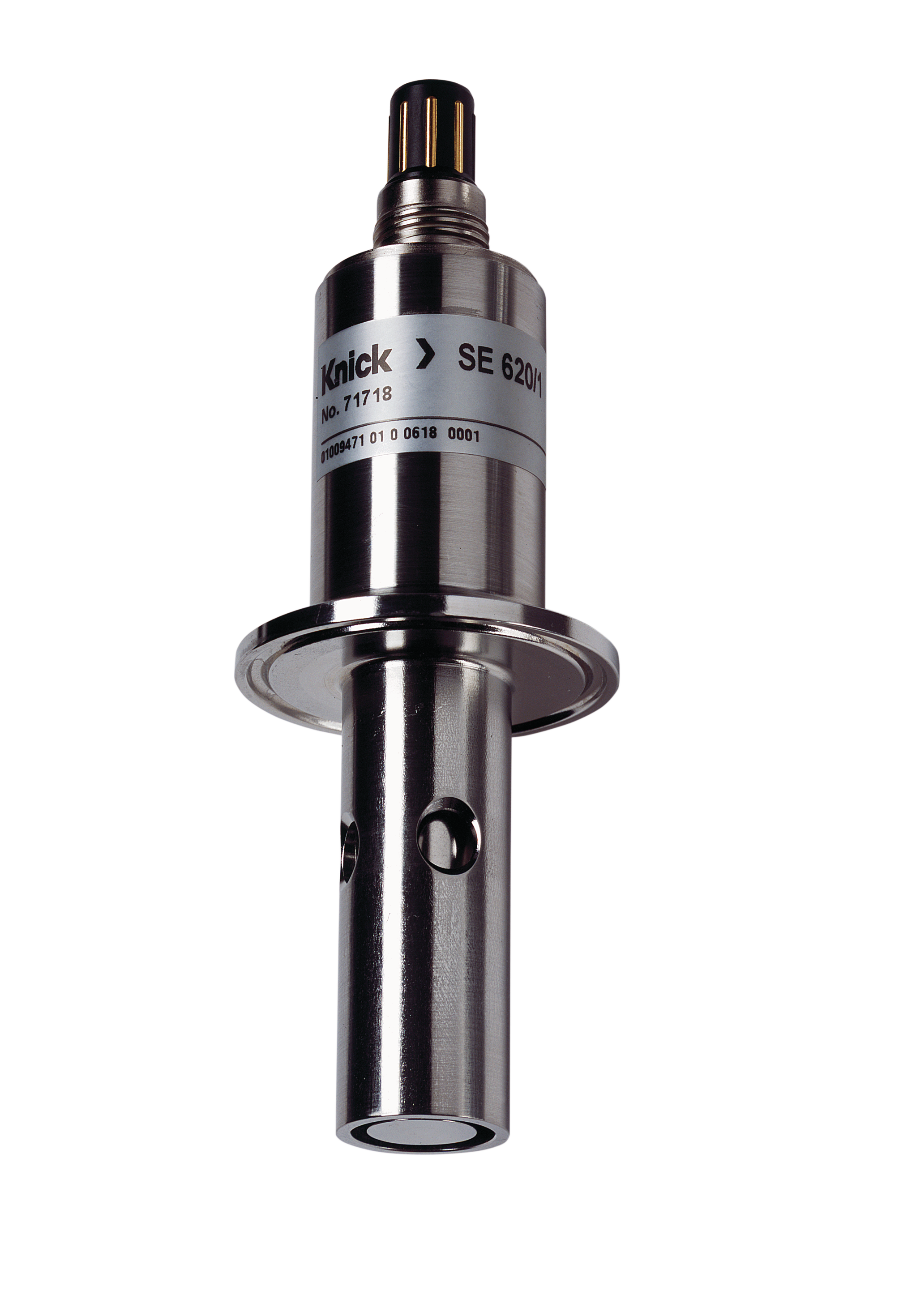

SE620 2-Electrode Conductivity Sensor | VP | Pharma compliant hygienic design
Product number:
SE620/1

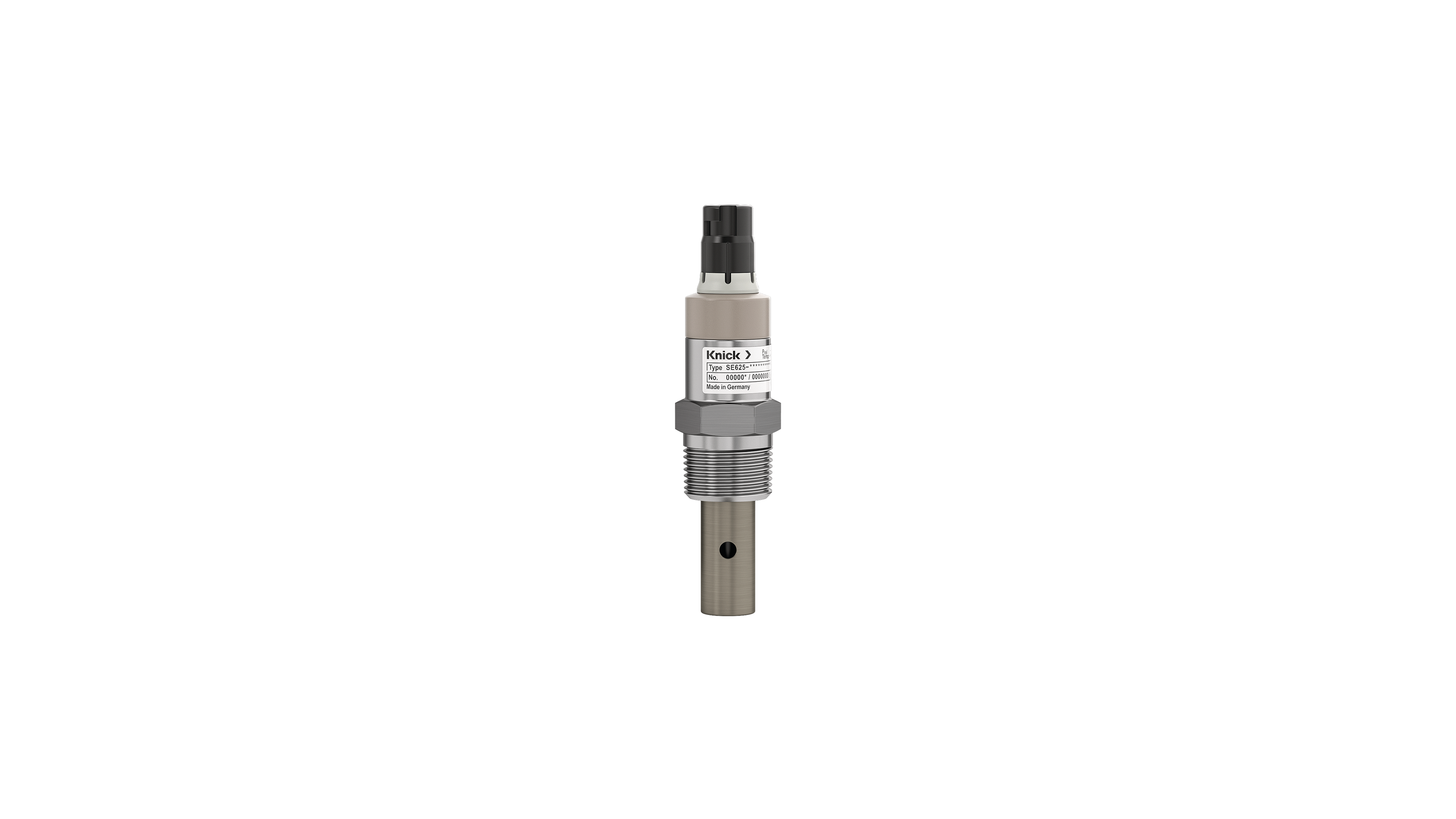

SE625 2-Electrode Conductivity Sensor | Memosens | Measuring range 0 … 1,000 μS/cm
Product number:
SE625-MS

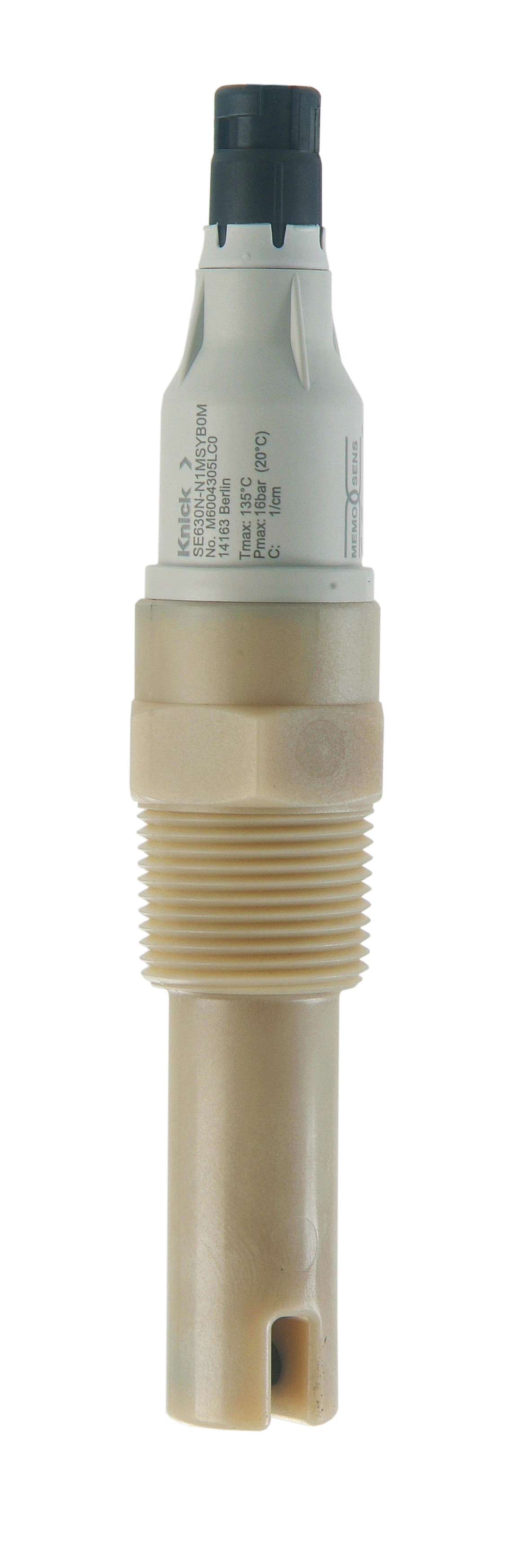

SE630 Conductivity Sensor | 2 Graphite electrodes | Memosens | NPT 1 | Measurement of conductivities up to 20 mS/cm
Product number:
SE630N-N1MSYB0M
SE655 Toroidal Conductivity Sensor | Fixed cable | Ex | PEEK | High chemical resistance
Product number:
SE655X
SE655 Toroidal Conductivity Sensor | Fixed cable | PEEK | High chemical resistance
Product number:
SE655
SE655 Toroidal Conductivity Sensor | Memosens | 3 m Fixed cable | PEEK | High chemical resistance
Product number:
SE655N-GEFFT0AM
SE655 Toroidal Conductivity Sensor | Memosens | 7 m Fixed cable | Ex | PEEK | High chemical resistance
Product number:
SE655X-GEFTT0AM
SE655 Toroidal Conductivity Sensor | Memosens | 7 m Fixed cable | PEEK | High chemical resistance
Product number:
SE655N-GEFTT0AM

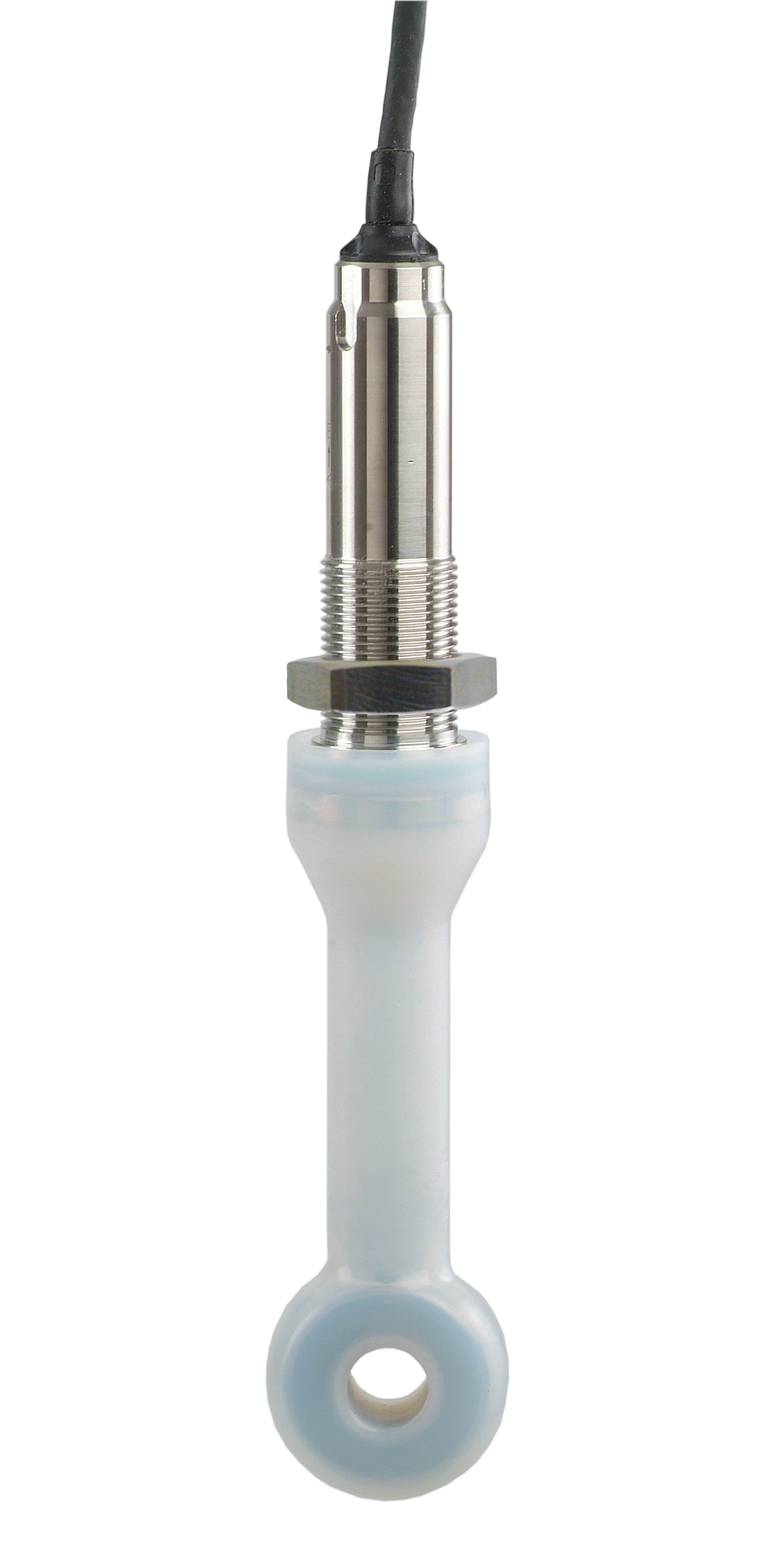

SE656 Toroidal Conductivity Sensor | Memosens | Fixed cable | Ex | PFA | Resistant to highly oxidizing media
Product number:
SE656X -GEFTW0KM
SE656 Toroidal Conductivity Sensor | Memosens | Fixed cable | PFA | Resistant to highly oxidizing media
Product number:
SE656N -GEFTW0KM

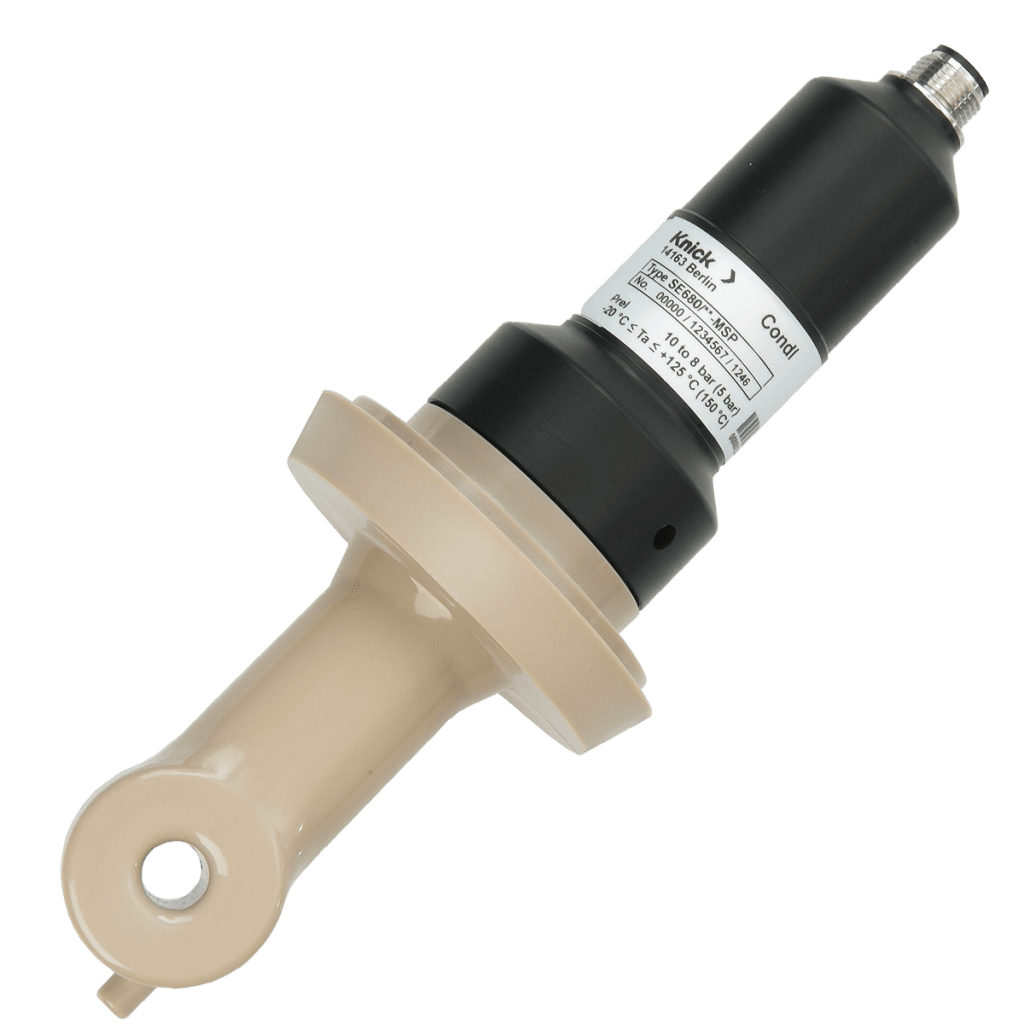

SE680 Digital Toroidal Conductivity Sensor | Clamp 2" | Ex | FDA-approved PEEK | Measuring range 0 … 2000 mS/cm
